Project Overview

Project

HIPPS System – Logic Solver

End User

Total

Client / EPC

Italfluid

Location

Italy

Plant Type

Oil & Gas – Safety Systems

Project Nature

Design and supply of HIPPS logic solver system (SIL-rated)

Enermove delivered a HIPPS (High Integrity Pressure Protection System) Logic Solver, designed to ensure safe and reliable shutdown of critical process lines in case of overpressure conditions.

The system represents a key element of the plant Safety Instrumented System (SIS), enabling fast and deterministic response to process deviations while maintaining compliance with stringent safety standards.

Engineered as a compact and pre-assembled solution, the system ensures high reliability, simplified installation and reduced commissioning risk.

Scope of Supply

Enermove delivered a fully integrated safety control solution including:

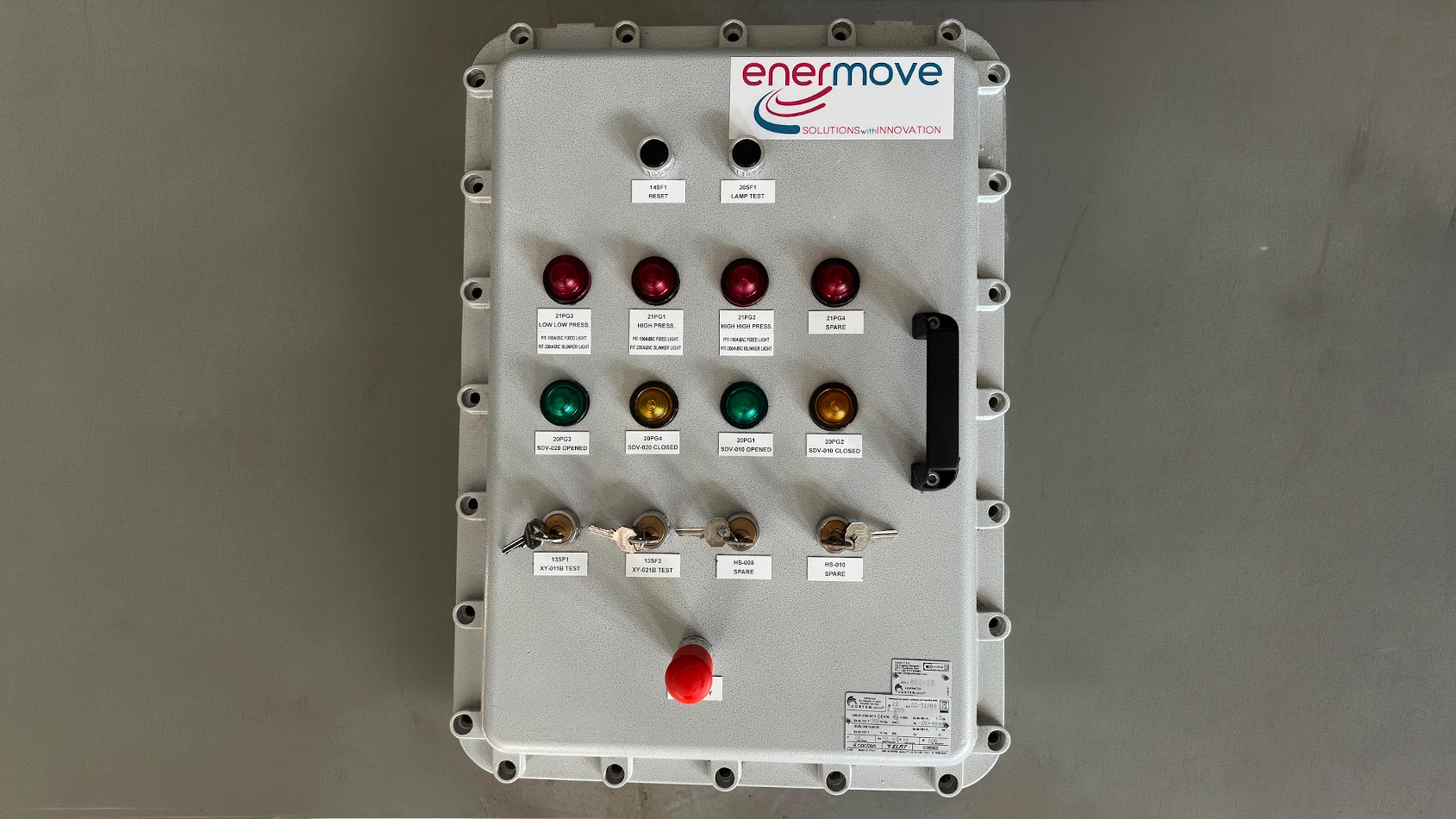

HIPPS Logic Solver Panel

Ex-d certified junction box with integrated safety PLC (SIL 3 capable)

Modular logic solver with digital and analog I/O for pressure and valve management

Interface for pressure transmitters (PIT) and valve signals

Local push buttons for valve control and system interaction

Complete internal cabling and ready-to-install configuration

The system was designed to manage multiple field signals and ensure fast safety shutdown logic execution

Enermove Challenge

  • Designing a SIL-rated safety system compliant with HIPPS requirements
  • Ensuring high reliability and fail-safe operation for critical process protection
  • Integrating multiple field inputs (pressure transmitters and valve signals) into a single logic system
  • Operating in hazardous area (Zone 2, Ex-d execution)
  • Delivering a compact and pre-tested solution to reduce site risks
  • Guaranteeing deterministic response times for safety shutdown

Enermove Performance

Enermove successfully delivered:

  • A fully engineered HIPPS logic solver system
  • SIL-capable safety PLC with modular architecture
  • Reliable integration of process signals and actuators
  • Compact and robust Ex-d enclosure for hazardous environments
  • Reduced installation and commissioning time through pre-assembly

Key Facts & Numbers

Location

Italy

Facility Type

Oil & Gas – Safety Instrumented System (SIS)

Main Equipment

HIPPS Logic Solver · Safety PLC · Junction Box (Ex-d)

System Inputs

Pressure Transmitters (PIT) · Valve Digital Signals

Safety Level

SIL 3 capable logic solver

Hazardous Area

Zone 2 · Explosion-proof (Ex-d)

Standards

IEC · ASME · API

Environmental Conditions

Temperature up to 50°C · High humidity

Delivery Model

Factory pre-assembled and tested system

Enermove Role

Safety System Integrator · Automation Supplier

Key Value Delivered

  • Enhanced plant safety through HIPPS protection logic
  • Fast and reliable shutdown response in critical conditions
  • Reduced risk of overpressure events and equipment damage
  • Simplified installation thanks to modular pre-assembled design
  • Full compliance with safety and hazardous area standard
