Overview

The Produced Water Treatment System is designed to treat water generated during oil and gas production, removing oil, suspended solids, and dissolved contaminants to ensure safe disposal, reinjection, or reuse in compliance with environmental and operational requirements.
The system plays a critical role in maintaining plant sustainability and operational efficiency, enabling effective management of produced water under varying process conditions.

System Scope

Produced Water Treatment Systems are engineered as fully integrated packages and typically include the following main components:

  • Inlet manifold and isolation valves
  • Oil–water separation units, including:
    • Hydrocyclones, designed to remove dispersed oil droplets using centrifugal forces, providing compact and efficient primary deoiling under high-pressure conditions
    • Induced Gas Flotation (IGF) units, utilizing fine gas bubbles to enhance the separation and flotation of oil droplets and suspended solids, achieving low oil-in-water concentrations
  • Deoiling and polishing systems
  • Filtration units (media filters, cartridge filters)
  • Chemical dosing systems (coagulants, flocculants, demulsifiers)
  • Degassing systems (when required)
  • Sludge handling and disposal systems
  • Water storage and buffer tanks

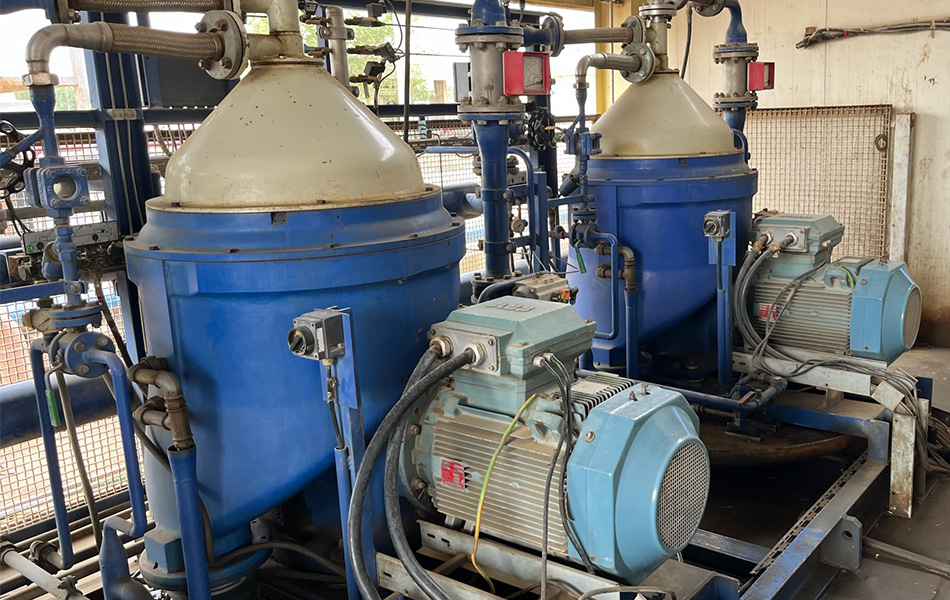

Subsystems

Inlet and Equalization System

Engineering of inlet manifolds, isolation valves, and buffer tanks to stabilize flow, pressure, and contaminant load, ensuring consistent operation of downstream treatment units.

  • Hydrocyclones
    Engineering of hydrocyclone units to remove dispersed oil droplets from produced water using centrifugal forces. These systems are designed for high-pressure operation, compact footprint, and high-efficiency separation, typically handling fluctuating flow rates while maintaining stable performance.
  • Induced Gas Flotation (IGF) Units
    Engineering of IGF systems to enhance oil and solids removal by introducing fine gas bubbles that attach to oil droplets and suspended particles, promoting flotation and separation. These units are designed to achieve low oil-in-water concentrations and improve overall treatment efficiency.



Engineering of advanced polishing technologies to further reduce residual oil content and meet discharge or reinjection specifications.

Engineering of filtration units to remove fine suspended solids and remaining contaminants, ensuring final water quality compliance.

Engineering of chemical injection systems to enhance separation efficiency, control emulsions, and optimize overall treatment performance.

Engineering of degassing units to remove dissolved gases (e.g., methane, H₂S, CO₂), improving safety and downstream treatment efficiency.

Engineering of sludge collection, treatment, and disposal systems to manage separated oil and solids.

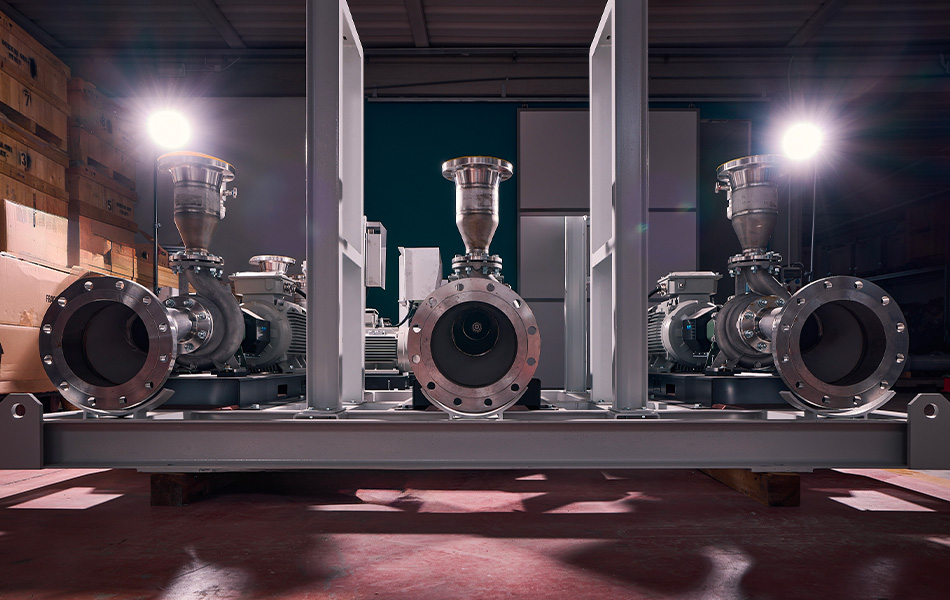

Engineering Approach

The engineering of produced water treatment systems follows an integrated and environmentally driven design approach, focused on treatment efficiency, operational reliability, and regulatory compliance. Engineering activities begin with the definition of the design basis, including flow rate, oil content, solids concentration, chemical composition, pressure, temperature, and discharge or reinjection limits.
Key engineering activities include:

  • Selection and sizing of separation, filtration, and polishing technologies
  • Definition of oil-in-water removal targets and treatment efficiency
  • Mechanical and material design suitable for produced water service
  • Integration of chemical dosing, sludge handling, and pumping systems
  • Design of safety, isolation, and protection philosophy
  • Layout optimization for operability and maintenance
  • Compliance with applicable API, IEC, and environmental standards

This approach ensures effective treatment performance, environmental compliance, and long-term system reliability.

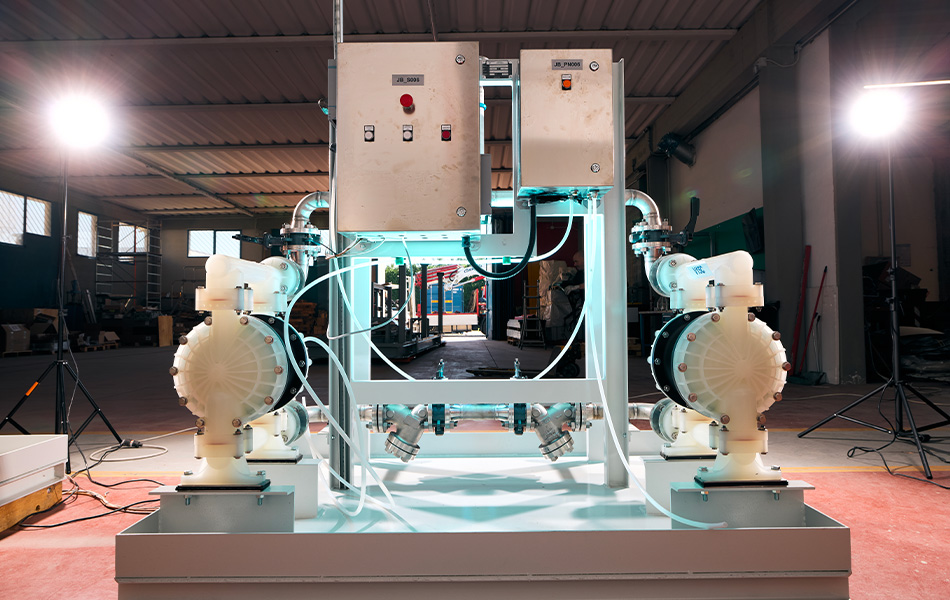

System Integration

Produced Water Treatment Systems are not standalone units, but fully integrated components of the overall facility, managing water streams under normal, transient, and emergency conditions.
The system is engineered to interface seamlessly with:

  • Production and separation systems, receiving produced water from upstream oil and gas processing units
  • Deoiling and pre-treatment systems, improving overall treatment efficiency
  • Advanced treatment systems (UF, RO, ion exchange), when reuse or high-quality water is required
  • Water reinjection systems, ensuring compliance with reservoir injection specifications
  • Sludge handling and disposal systems, managing treatment by-products
  • Control systems, enabling real-time monitoring, alarms, and operator awareness

This integrated design philosophy ensures that, when produced water quality fluctuates or abnormal conditions occur, the system responds in a controlled, safe, and coordinated manner—protecting the environment and overall plant integrity.
